Soundproof 25mm Coolroom Panels Pur Pir Sandwich Panel

  • Soundproof 25mm Coolroom Panels Pur Pir Sandwich Panel
  • Soundproof 25mm Coolroom Panels Pur Pir Sandwich Panel
  • Soundproof 25mm Coolroom Panels Pur Pir Sandwich Panel
Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Glasswool Sandwich Panel
Document Product Brochure PDF
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fireproof Soundproof Glasswool Sandwich Panel For Modern Construction Insulation Advantage Waterproof Moistureproof Fireproof Etc.
Density 64kg/m3 Color Customized
Length Customized Warranty More Than 50 Years
Panel Type Glasswool Sandwich Panel Sample Free Sample
After-sale Service Online Technical Support, Onsite Installation Steel Thickness 0.4mm-0.8mm
Highlight

Soundproof 25mm coolroom panels

,

Pir 25mm coolroom panels

,

25mm pur pir sandwich panel
Leave a Message
Product Description

Product Description:

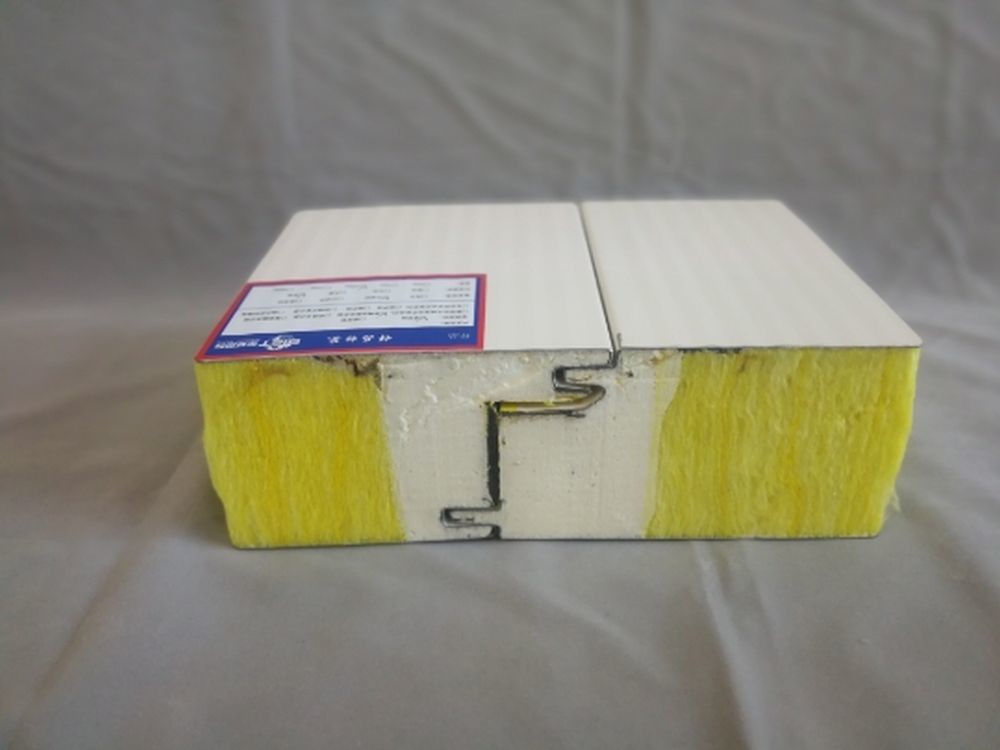

Baodu’s glass wool Sandwich Panel includes 3 layers : the external and internal is galvanized steel plate or aluminum plate , there are two kinds of core materials : one is pure glass wool panel without Pur or Pir edge, while the other is glass wool panel with Pur or Pir edge.Glass wool or mineral wool panels are sandwich panels whose sheets are associated solidly with glass wool protection. These panels are subsequently exceptionally versatile composite panels that have both burden-bearing and protecting capacities. The panel’s protection is made of around 95 – 99 % liquid shake and dismantled into strings to acquire a sinewy structure. The strands are uniformly distributed to guarantee that the shear quality is kept steady.

Features:

Adequate Insulation

Adequate insulation offers thermal & acoustic insulation properties.

Best alternative

cost-efficient alternative to conventional building masonry construction where there is a higher risk of fire.

Customizable

100% customized sizes available as per the customer requirement or building requirements.

Energy savings

Low thermal conductivity helps in higher energy savings and maintains a desired temperature.

Fire Resistance

The core material of Glasswool panels is inflammable and insulating. Thus it prevents flames from spreading and is a viable choice for fire-resistant constructions.

Zero Maintenance

Glasswool insulated sandwich panels does not requires painting, any kind of maintenance.

Technical Parameters:

Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.69 12.95 L(m) 3.74 3.23 2.86 2.57 2.23
70 0.47 14.50 L(m) 5.01 4.34 3.86 3.48 3.05
100 0.36 16.04 L(m) 6.21 5.32 4.73 4.28 3.75
125 0.34 17.06 L(m) 7.11 6.31 5.77 4.93 4.32
150 0.33 19.14 L(m) 8.00 6.94 6.18 5.58 4.89
200 0.30 22.78 L(m) 9.79 8.56 7.63 6.88 6.00


Support and Services:

Glasswool Sandwich Panel has a full range of technical support and services, allowing customers to enjoy the best product experience. Our technical support includes:

  • Providing detailed product specifications and installation instructions.
  • Providing free on-site installation guidance.
  • Providing product related technical advice.
  • Providing technical support for the whole process of product use.
  • Providing free technical support services for product quality problems.


Packing and Shipping:

Glasswool Sandwich Panel Packaging and Shipping:

  • Packaged with steel sheet, depending on the size and quantity of the product.
  • Packaging materials must be able to withstand normal handling and transportation.
  • The product must be clearly labeled, including the name of the product, quantity, and destination.
  • The product should be shipped in a secure manner to avoid damage or loss in transit.


FAQ:

Q&A about Glasswool Sandwich Panel Q1: What is the brand of Glasswool Sandwich Panel? A1: The brand of Glasswool Sandwich Panel is BAODU. Q2: What is the model number of Glasswool Sandwich Panel? A2: The model number of Glasswool Sandwich Panel is Glasswool Sandwich Panel. Q3: Where is the Glasswool Sandwich Panel produced? A3: The Glasswool Sandwich Panel is produced in Hebei,China. Q4: Does the Glasswool Sandwich Panel have CE certification? A4: Yes, the Glasswool Sandwich Panel has CE certification. Q5: What is the minimum order quantity for Glasswool Sandwich Panel? A5: The minimum order quantity for Glasswool Sandwich Panel is discussible.
