Fast Install Heavy Duty Prefabricated Metal Warehouse Multifunctional

Place of Origin Hebei,China
Brand Name BAODU
Certification ISO9001,CE
Model Number Steel Warehouse
Document Product Brochure PDF
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 21days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 Square Meter/Square Meters per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keyword Steel Structure Building Warehouse Product Name Fast Install Prefab Warehouse Steel Structure Building , Heavy Duty Prefabricated Warehouse China Factory Directly Supply
Durability High Window Aluminum Alloy Window, Plastic Steel
Weather Resistance High Feature Long Fatigue Life
Drawing Design SAP2000/AutoCAD /PKPM /3D3S/TEKLA Tolerance ±1%
Roof & Wall Panel Sanwich Panel, Single Sheet Column And Beam Welded/ Hot-rolled H-section Steel, Square Tube Etc
Highlight

Multifunctional Prefabricated Metal Warehouse

,

Heavy Duty Prefabricated Metal Warehouse

,

Fast Install Prefabricated Metal Warehouse

Leave a Message
Product Description

Fast Install Prefab Warehouse Steel Structure Building , Heavy Duty Prefabricated Warehouse China Factory Directly Supply

Product Description:

Our Prefab Steel Warehouse is available with two surface treatment options to fit your needs: hot dip galvanised or painted. This ensures that it is highly resistant to fire and other hazards. You can rest assured that your valuable assets will be protected with this top-of-the-line steel structure.

Whether you need a warehouse, workshop, hangar or hall, our Prefab Steel Warehouse is the perfect solution for your needs. It is expertly crafted to meet your specific requirements and can be customized to fit your unique situation.

Don't settle for less when it comes to protecting your valuable assets. Get the best with our Prefab Steel Warehouse product. Order now and experience the peace of mind that comes with having a high-quality, fire-resistant, steel structure protecting your valuable assets.



Features:

Material list
Project sample
Steel structure warehouse
Building size
Such as 78*30*8.5 m/ customized
Main steel structure
Steel column
H(300-550)*200*6*10 mm , steel Q345
Steel beam
H(300-550)*180*6*8 mm, H 300*180*6*8 mm,steel Q345
Second steel structure
Roof purline
C180*75*50*2.5 mm
Wall purline
C180*75*50*2.5 mm
Cross support
20 round steel bar, steel Q 235
Column bracing
20 round steel bar, steel Q 235
Angle brace
L 50*4 Angle steel , steel Q 235
Tie bar
89*3 mm, steel Q235
Roof and wall panel
Roof panel
50/80/100/120/150/200 mm sandwich panel (EPS, PU, Rock wool, Glass wool)
Wall panel
50/75/100/120/150/200 mm sandwich panel (EPS, PU, Rock wool, Glass wool)
Rolling up door
Automatic rolling up door
Single wing door
Sandwich panel door
Window
Aluminum/ PVC sliding window with single glass
Fittings
Glass adhesive, self-tapping screw, etc
Other fittings
Embedded
M 24 steel Q 235, process
Intensive bolt
Grade 10.9
Ordinary bolt
Grade 4.85



Technical Parameters:



If you are interested in our steel structure , please give us the following information:
1 Location (where will be built? ) _____country, area
2 Size: Length*width*height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height)____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets
will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height ___m.



Applications:

Fast Install Heavy Duty Prefabricated Metal Warehouse Multifunctional 0

Steel warehouse workshop: The BAODU Steel Warehouse is perfect for use as a steel warehouse workshop. It can be used to store equipment, materials, and products. The product's gable frame Steel Structure design provides ample space for storage and can be customized to meet specific storage needs.

Hangar hall: The durability and strength of the BAODU Steel Warehouse make it an excellent choice for a hangar hall. It is suitable for storing planes, helicopters, and other aircraft. The product's high fire resistance makes it a safe storage option for aircraft.

Prefab Warehouse Construction: The BAODU Steel Warehouse is an ideal product for prefab warehouse construction. It is easy to install and requires minimal maintenance. The product's low maintenance and high fire resistance make it a cost-effective and safe option for prefab warehouse construction.



Customization:

Fast Install Heavy Duty Prefabricated Metal Warehouse Multifunctional 1

Fast Install Heavy Duty Prefabricated Metal Warehouse Multifunctional 2

Support and Services:

Fast Install Heavy Duty Prefabricated Metal Warehouse Multifunctional 3

Our Prefab Steel Warehouse product comes with comprehensive technical support and services to ensure that our customers have a seamless experience from start to finish.

Our technical support team is available to answer any questions or concerns customers may have about the product, including its design, installation, and maintenance. We also offer on-site support and training to ensure that the installation process goes smoothly and that our customers are comfortable operating and maintaining the product.

In addition, we offer a range of services to customize the product to meet specific customer needs. These services include design and engineering, fabrication, and installation.

We pride ourselves on providing top-notch technical support and services to ensure that our customers are satisfied with their purchase and can rely on the product for years to come.

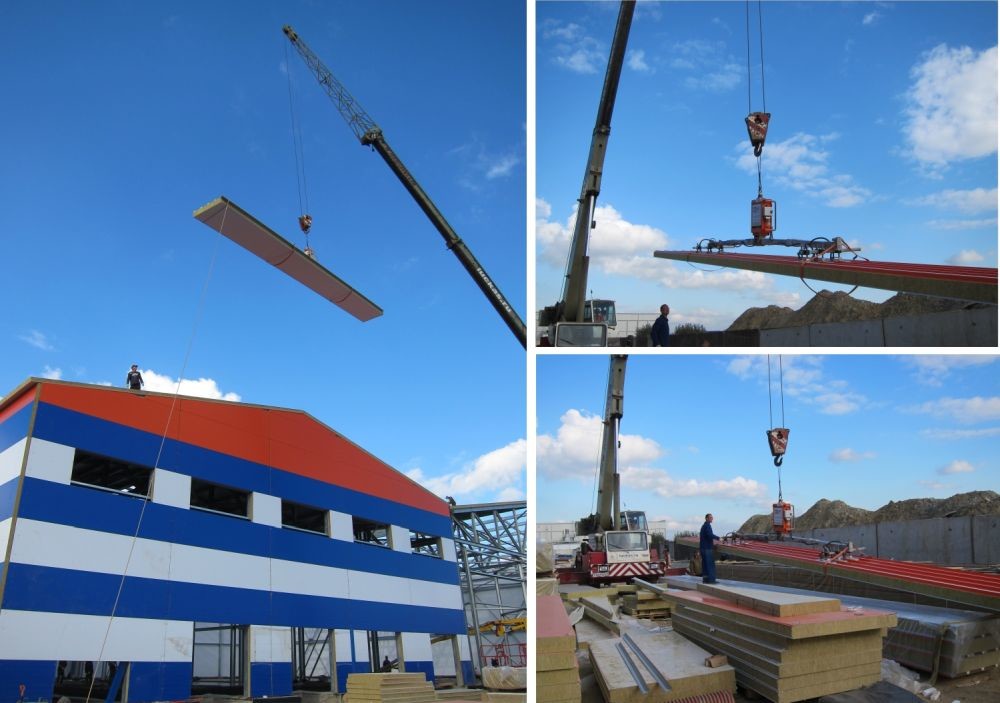

Project Case:

Fast Install Heavy Duty Prefabricated Metal Warehouse Multifunctional 4Fast Install Heavy Duty Prefabricated Metal Warehouse Multifunctional 5Fast Install Heavy Duty Prefabricated Metal Warehouse Multifunctional 6



Packing and Shipping:

Product Packaging:

  • The Prefab Steel Warehouse will be securely packaged in container to prevent any damages during transportation.
  • All parts and components will be labeled and organized for easy assembly.
  • The package will include a detailed instruction manual for assembly.

Product Shipping:

  • The Prefab Steel Warehouse will be shipped via a trusted shipping company.
  • Shipping cost will be calculated based on the distance and weight of the package.
  • Delivery time will depend on the location of the customer and shipping method selected.
  • Once the product is shipped, the customer will be provided with a tracking number to monitor the progress of the delivery.


FAQ:

Q1: What is the brand name of the product?

A1: The brand name of the product is BAODU.

Q2: What is the model number of the product?

A2: The model number of the product is Steel Warehouse.

Q3: What certifications does the product have?

A3: The product is certified with ISO9001 and CE.

Q4: What is the minimum order quantity?

A4: The minimum order quantity is discussible, depending on the client's needs.

Q5: What are the payment terms?

A5: The payment terms are L/C, D/A, D/P, T/T, Western Union, and MoneyGram.
